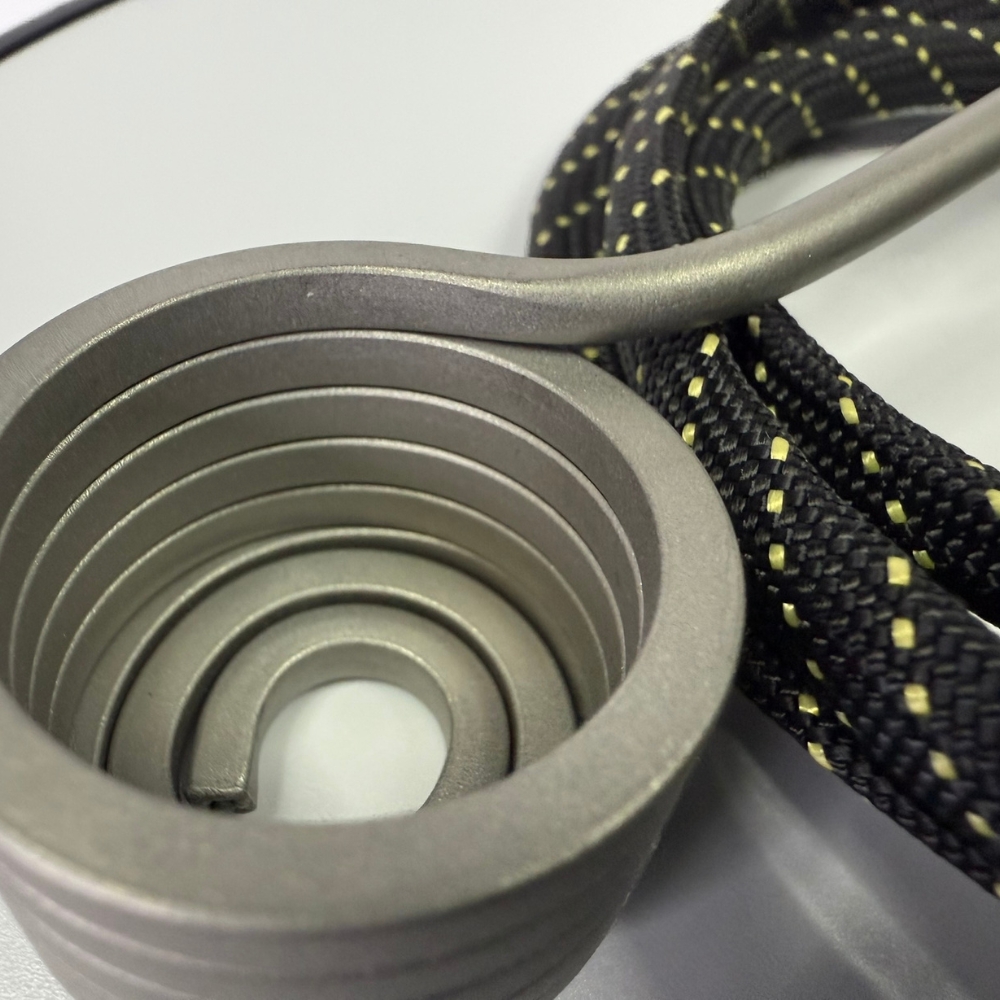

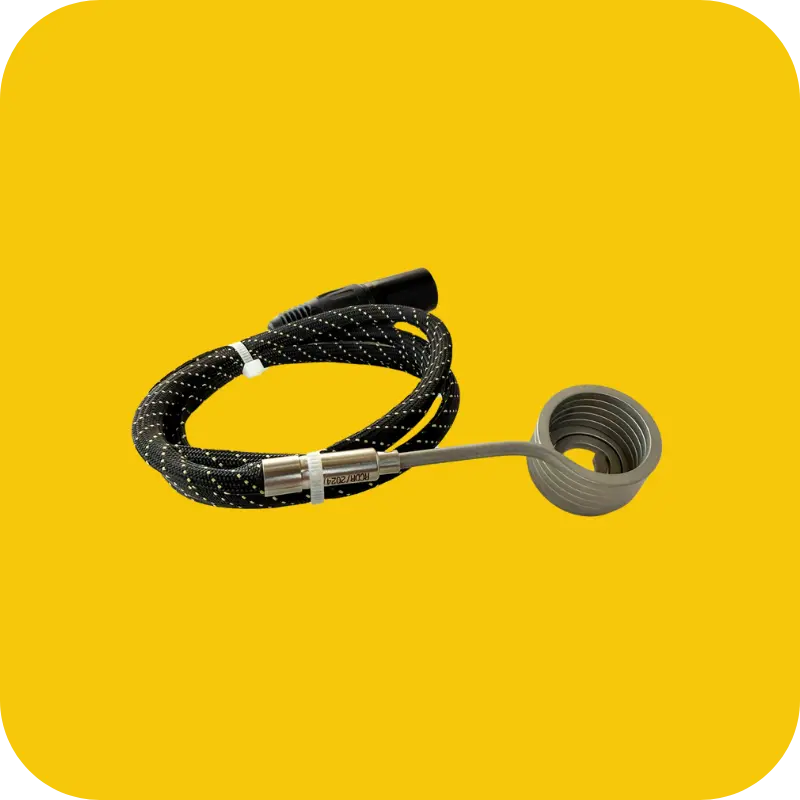

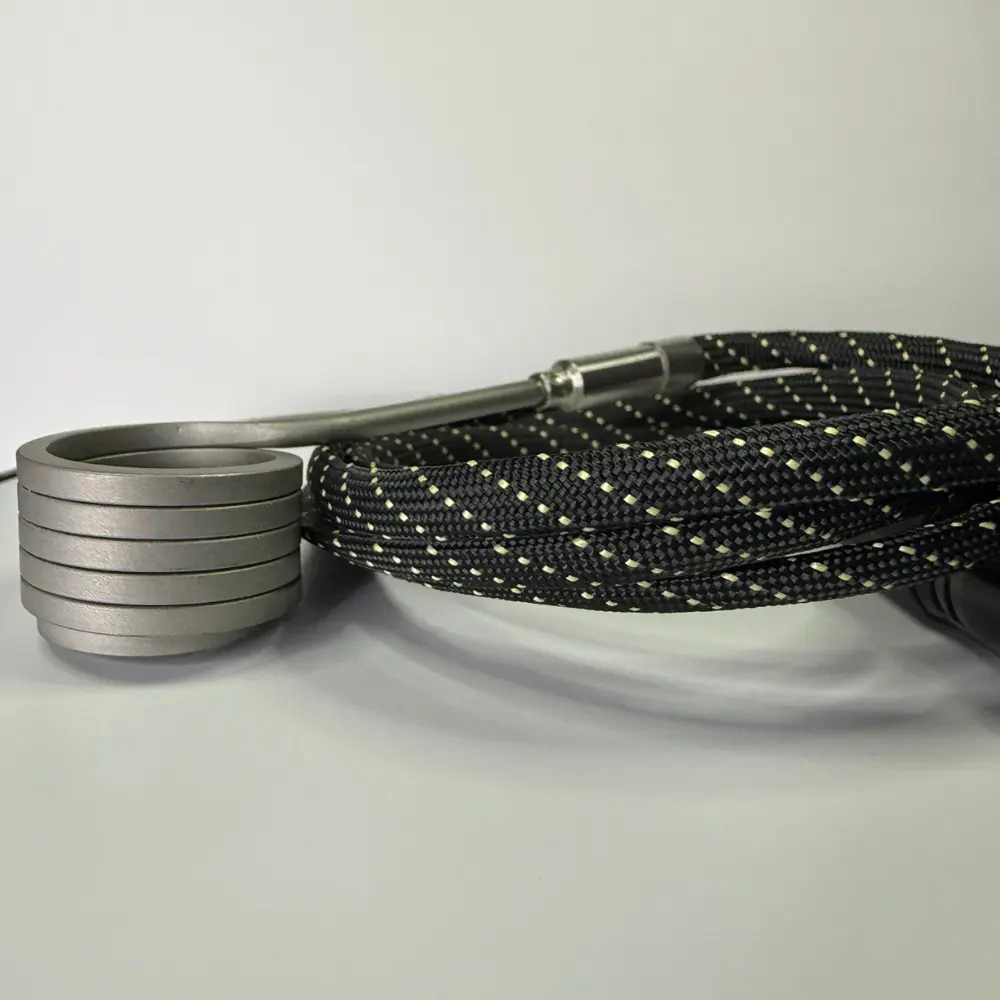

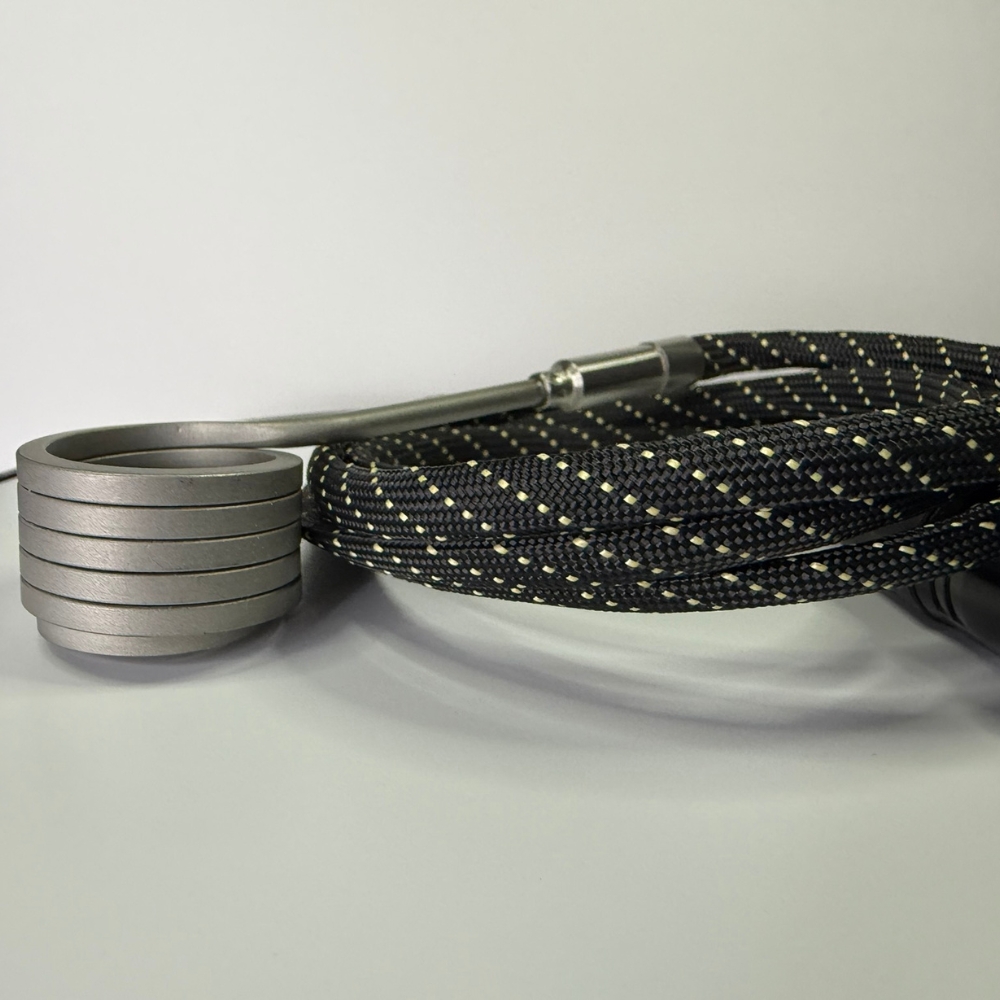

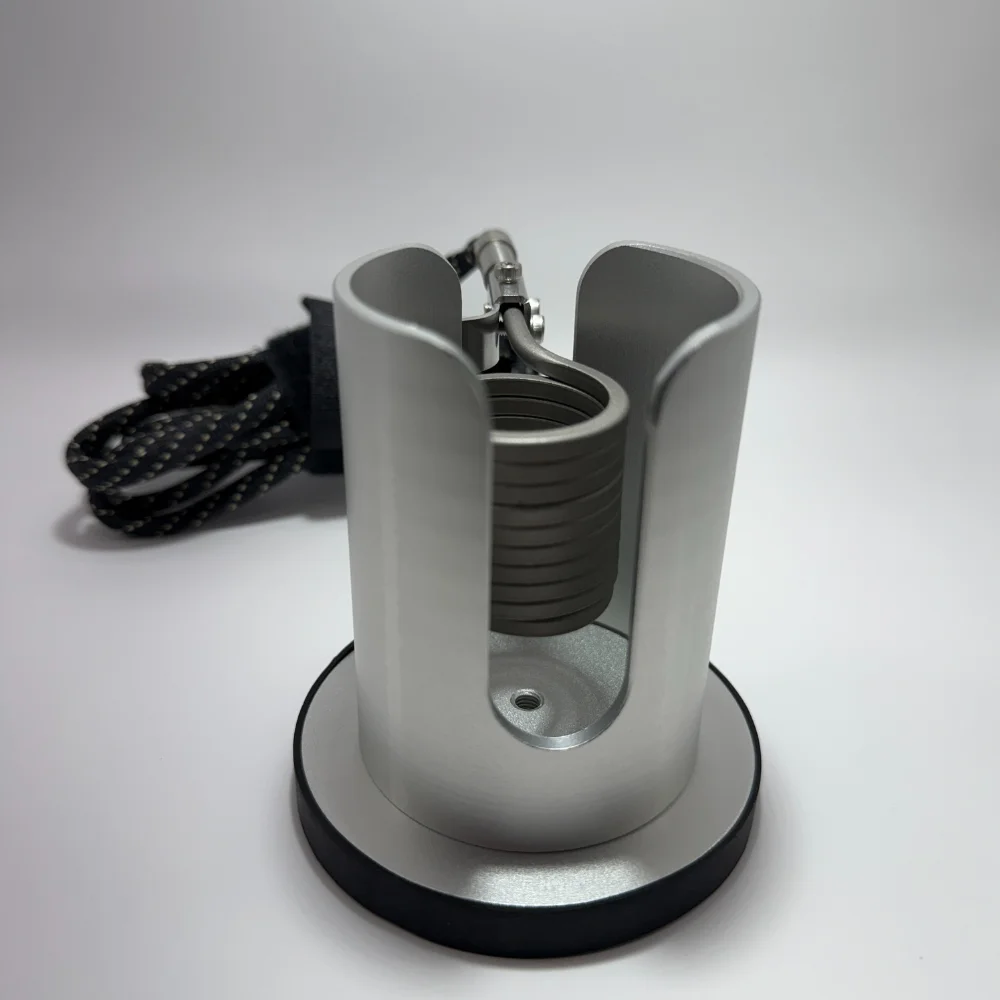

The choice comes down to how your banger is built and how you prefer your heat delivered. An axial coil wraps the bottom and the sides of the banger’s bucket — picture a bucket shape, closed on the bottom with several vertical wraps climbing the walls. It contacts the most surface area, heats up faster than other coil styles, and provides the most even heat distribution across the full bucket. This is the most popular configuration for 25mm setups and the right choice for most quartz banger enails. Axial coils secure to bangers that have a stem at the bottom of the bucket — the coil’s center pin slots through that stem and a cotter pin clips it in place.

A barrel coil wraps only the sides of the banger — no bottom wrap. From above it looks like an open ring rather than a bucket. Barrel coils are designed for bangers that have a side arm on the neck (not the bottom) to hold the coil in position, since there is no bottom wrap to support it from below. Because the bottom of the bucket is not directly heated, barrel coils heat up slightly slower and produce a less intense heat profile — which makes them a better match for smaller dabs, beginners building their tolerance, or anyone who wants a more gradual build in vapor density. If your banger has a side arm rather than a bottom stem, barrel is your coil.

If you are not sure which style your banger takes: look at where the attachment point is. Bottom center stem = axial. Side arm on the neck = barrel.

This is the single most common mistake buyers make when ordering a replacement coil, and it is worth understanding before you buy. All 25mm enail coils use a 5-pin XLR connector — the same physical plug shape. The problem is that different controller manufacturers wire their pins in different orders. The plug will physically fit into your controller regardless of wiring, but if the wiring order does not match, the coil will not function correctly. In most cases the controller displays “EEEE” — the same error it shows when no coil is plugged in at all, because the thermocouple signal is not arriving on the pins the controller expects. In rare cases a severe mismatch can damage the coil outright.

The five pins carry two functions: two pins deliver AC power to the heating element, two carry the K-type thermocouple signal (TC+ and TC−), and one is ground. The power pins are interchangeable since AC is non-polar, but the thermocouple polarity must match — TC+ to TC+ and TC− to TC− on both ends. The safest approach when replacing a coil for an existing controller is to buy the same brand as your controller box. If you are buying from us and want to confirm compatibility before ordering, reach out through chat or Discord with the brand and model of your controller and we will point you to the correct option.

“EEEE” means the controller is not receiving a temperature reading from the thermocouple — the same error it shows when no coil is connected at all. There are two likely causes when the coil is new and physically plugged in. First, and most common: pin wiring mismatch. The thermocouple signal is arriving on the wrong pins and the controller cannot read it. Second: the coil is not fully seated — the XLR connector needs to be pushed in until it clicks or locks. Try reseating the connector firmly before anything else.

If the coil is fully seated and EEEE persists, the issue is almost certainly a wiring mismatch between the coil and your controller brand. The coil itself is not damaged — the heating element and thermocouple are both intact, just wired in an order your controller does not recognize. Contact us before assuming the coil is defective, as a wiring mismatch is a solvable problem with the right information about your controller.

K-type thermocouple. This is the industry standard for enail coils and virtually all enail PID controllers are built to read K-type thermocouple signals. K-type sensors cover a temperature range well beyond anything used in dabbing — typically up to 1,200°C — and are accurate and stable in the 300°F to 900°F range where enail sessions operate. It does matter in the sense that if a controller is calibrated for a different thermocouple type (J-type, T-type, etc.) and receives a K-type signal, the temperature reading will be incorrect even if the pin wiring is otherwise correct. In practice, virtually all enail controllers sold in the US are K-type compatible, so this is rarely an issue — but it is worth confirming if you are using an industrial PID controller that was not sold as an enail-specific unit.

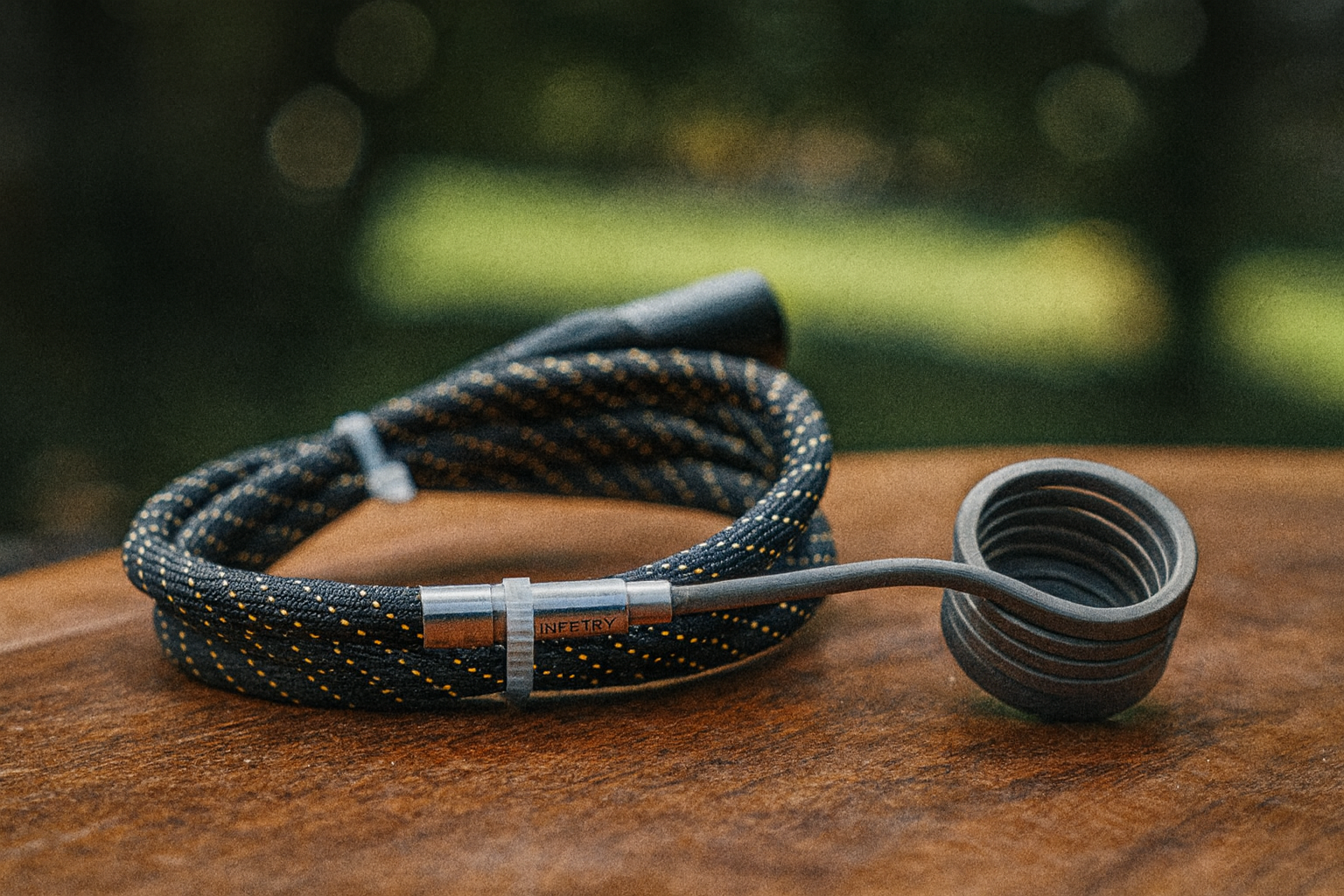

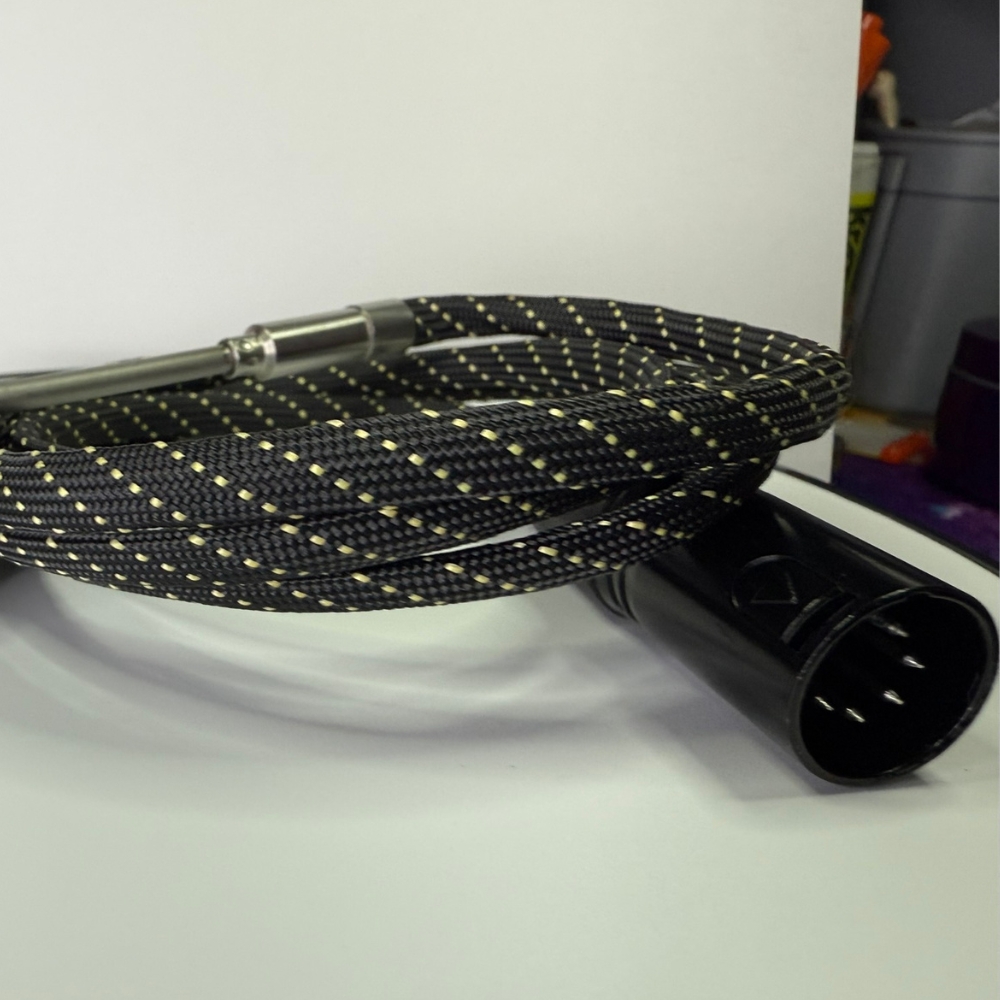

The Kevlar-braided fire-resistant sheath protects the coil cable in the section closest to the heating element — the part of the wire that runs at or near the banger during a session. Enail bangers run at temperatures between 400°F and 900°F depending on your session preference, and the coil itself reaches those same temperatures. Without a heat-resistant sheath, the cable insulation near the coil would degrade over repeated sessions, creating a fire risk and eventually an electrical failure. Kevlar sheathing handles continuous exposure to high heat without melting, cracking, or off-gassing. It is not a premium upgrade — it is the minimum standard for safe coil construction. Any replacement coil you buy for a 25mm enail setup should have a fire-resistant sheath as standard. Coils that use only standard silicone or rubber insulation are not built to the correct safety spec for sustained enail use.

The set temperature on your enail controller is the temperature at the coil — not the temperature at the inside of the banger. There is always a gap between coil temperature and banger temperature depending on how the coil fits, how much thermal contact there is, and how long the setup has been running. As a general starting framework: coil set points in the 500°F to 600°F range typically translate to low-temperature dab conditions inside the banger, which is where flavor is strongest and where live resin, live rosin, and solventless concentrates perform best. Set points in the 650°F to 750°F range produce medium-temp conditions with a balance of flavor and vapor density. Above 750°F at the coil starts pushing into high-temp territory — appropriate for harder-to-vaporize concentrates like HTFSE or for users who prioritize vapor production over terpene preservation.

The right number for your specific setup requires a short calibration session when you first run a new coil. Start at 550°F, give the system 3 to 5 minutes to fully stabilize, take a small test dab, and adjust up or down from there. Once you find your preferred set point write it down — enail sessions are most consistent when you return to the same number every time rather than guessing.

A quality 25mm coil under normal daily use should last a year or more. The thermocouple is typically the first component to degrade — it is the most thermally stressed part of the coil, cycling between ambient and session temperatures repeatedly. Signs that a coil is wearing out: temperature readings on the controller that start drifting or fluctuating more than usual even after recalibration, sessions that feel inconsistent hit-to-hit at the same set point, or the controller beginning to display intermittent errors it did not show before. Visible damage to the sheath or coil body is a more immediate signal.

One thing that shortens coil life significantly: leaving the enail running at full temperature for extended periods when not actively dabbing. If you are done for the session, turn it off. Controllers and coils are not designed for 12-hour idle sessions at 700°F. Running a clean, well-fitting coil at reasonable temperatures and turning it off between sessions is the most reliable way to maximize coil lifespan.

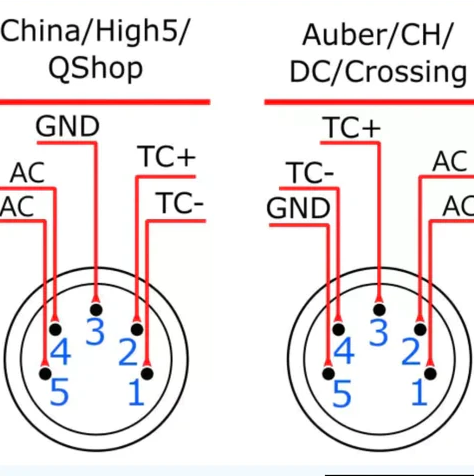

It depends on the pin wiring order of your specific controller, not just the brand. Auber, High Five, Crossing Tech, Dino Nail, and other manufacturers each wire their 5-pin XLR connectors in a specific order, and those orders are not all the same. Some brands have changed their wiring order between product generations, so even two controllers from the same brand may not share identical pinouts.

The fastest way to confirm compatibility: look up the pinout diagram for your specific controller model online or in its documentation and compare it to the pinout listed in the product description for the coil you are ordering. If you have both pinouts — controller and coil — you can verify the match before buying. If you cannot find the documentation, reach out to us with your controller’s brand and model number. We can help identify whether the coil you are looking at is a direct match or whether you need a specific brand option from the listing.
